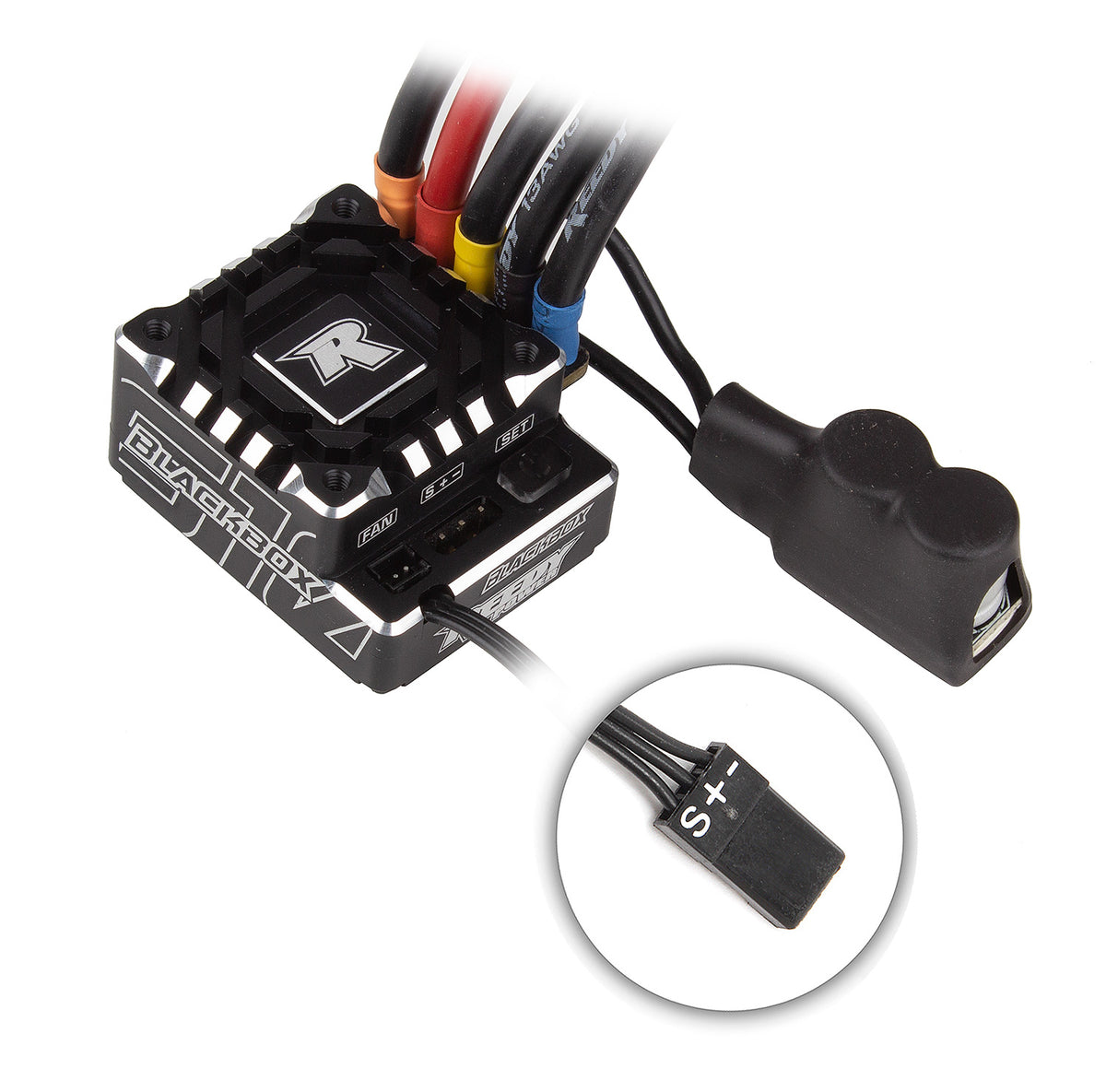

Reedy Power RP-27016 Blackbox 610R Competition ESC

SKU: RP27016
(0)
$209.99
Only 2 left
Low inventory - Hurry up!
Free shipping
100% secure payments
Industry leading quality

Got questions?

Feel free to get in touch

Featuring upgraded hardware, refined tuning options, and extensive validation by Reedy’s engineering and racing team, the Blackbox 610R offers superior performance, quality, and reliability for racers of all skill levels. With world-class throttle and brake responsiveness combined with precision adjustability, the Blackbox 610R is the ideal solution for both stock/spec and modified-class 1:10 on-road and off-road racing applications.


Features:

  • CNC machined black aluminum case with integrated heat sink
  • Fully adjustable brake, throttle, power, and safety functions (Requires #27027 Blackbox Programmer)
  • Blinky mode with ROAR approved software
  • Precision throttle and brake control
  • Ultra-low resistance FET board
  • 32-bit microcontroller unit (MCU)
  • On-board power button
  • Solder tabs with 13-gauge power wires
  • Pro external capacitor board
  • RPM and ESC temp data logging (Requires #27027 Blackbox Programmer)
  • Firmware updateable (Requires #27027 Blackbox Programmer)


Voltage Input:2S LiPo

Suggested Applications:1:10 off-road, 1:10 on-road

Continuous Current (A):160

Dimensions (mm):38.5 x 36.9 x 19.5

Motor Limit:4.5T

Weight w/o wires & fan (g):45

BEC:Adjustable 6.0-7.4V/5A

Power Wires:13-gauge silicone

Fan:Optional


This part is recommended for the following vehicles:

  • RC10B7
  • RC10B7D
  • RC10SC6.4
  • RC10T6.4


To program the Blackbox 610R, the #27027 Programmer with firmware version EE460139 must be used. This version is already installed when purchasing the #27017 610R/Programmer combo. Firmware updates and Blackbox Link version 2.6 can be found on the 610R product page.
